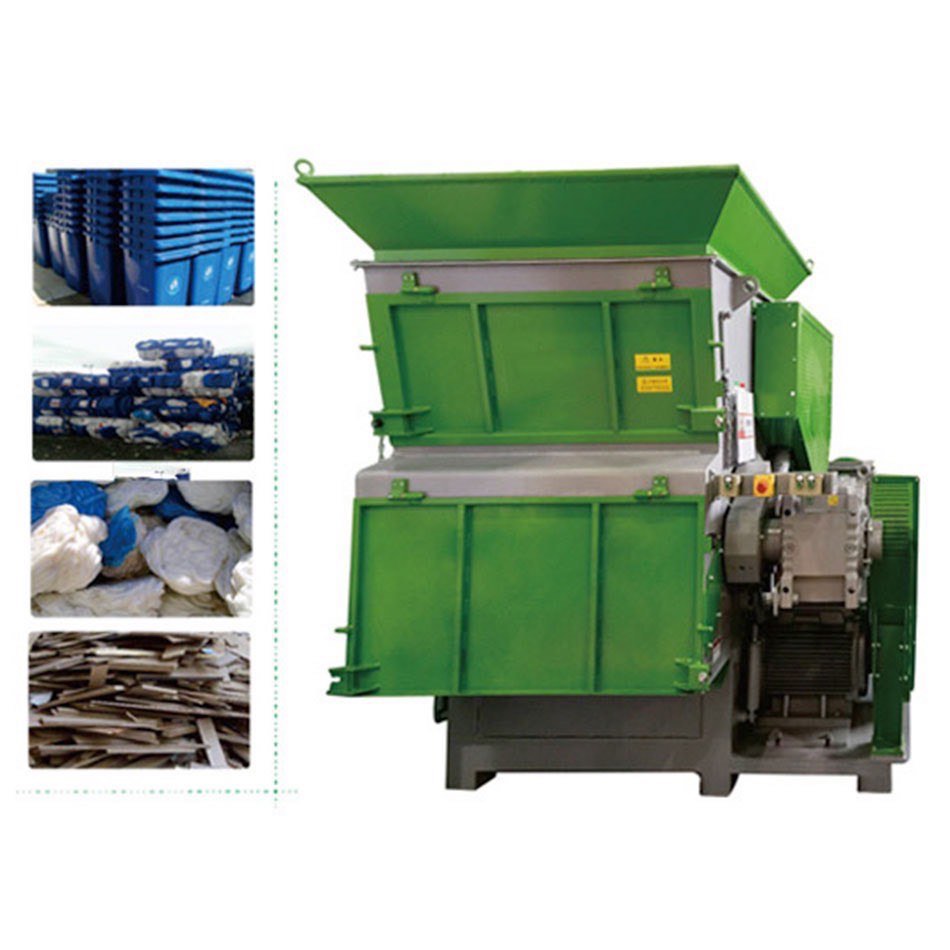

DGS – Universal Single Shaft Shredder

The DGS series universal single shaft shredder is specifically designed to meet the complex and demanding needs found throughout the vast plastic, paper, wood and waste recycling industries. The oversized rotor is excellent for large bulky and voluminous parts such as IBCs, drums, large automotive parts and other similar parts. The cutting knives are reversible to extend cutter life and with automatic reversing, this shredder will prevent jamming and continually perform. Stop selling your plastic purgings or cutting up you large bulky parts and start shredding these in our DGS single shaft shredder.

Specifications

Item Unit DGS850 DGS1200 DGS1500 DGS2000
Feeding Size mm 840×1570 1120×1570 1400×1570 1960×1570
Rotor Diameter mm 457 457 457 457
Rotary Speed rpm 74 74 74 74
Motor Power kw 37/45/55 55 75 2X55/2×75
Rotor knife pcs 60 81 102 144
Stator knife pcs 2×3 2×4 2×5 2×7
Pusher power kw 3.75 5.6 5.6 5.6
Screen Size mm 40~100 40~100 40~100 40~100
Shredding Chamber size mm 800×730 800×1000 800×1290 800×1860
Machine Dimension Length A mm 2300 2300 2300 2300
Length B mm 1650 1650 1650 1650
Length C mm 540 540 540 540
Height D mm 660 660 660 660
Height E mm 2250 2250 2250 2250
Height F mm 280 280 280 280
Width G mm 1990 2270 2600 3720
Width I mm 840 1120 1400 1960
Width J mm 860 1140 1420 1980
Length K mm 1570 1570 1570 1570
