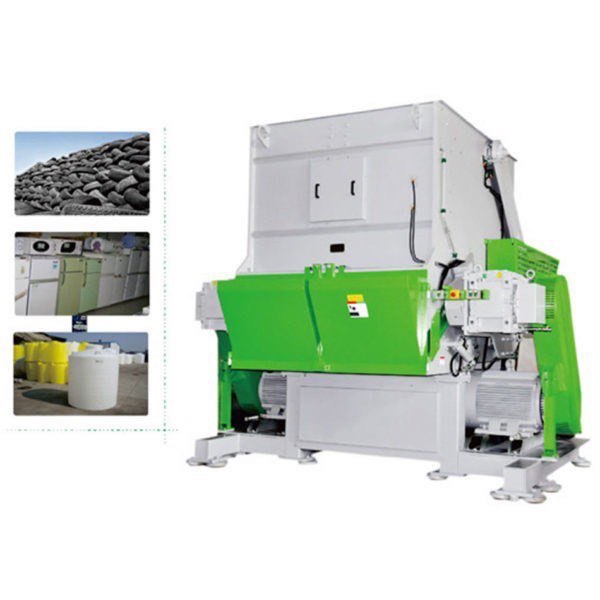

DGX- Heavy Duty Single Shaft Shredder

Our DGX series heavy duty single shaft shredders are specifically designed to meet the complex and high throughput applications of many diversified recycling industries. The DGX series has high throughput ability and usually produces 30-40% higher capacity due to the large rotor, high torque and rotor cutter design. This series of shredders also offers rotor cooling. With different configurations and wear packages, we can provide the right shredder to meet your application.

Specifications

Item Unit DGR1500 DGR2000 DGR3000
Feeding Size mm 2540×1620 2540×2020 2540×2820
Rotor Diameter mm 750 750 750
Rotary Speed rpm 52 52 52
Motor Power kw 2×75 2×75/2×90 2×132
Rotor knife pcs 76 96 136
Stator knife pcs 4 5 7
Pusher power kw 11 11 11
Screen Size mm 40~100 40~100 40~100
Shredding Chamber size mm 1500×1490 1500×1900 1500×2700
Machine Dimension Length A mm 3600 3600 3600
Length B mm 2260 2260 2260
Length C mm 870 870 870
Height D mm 3350 3350 3350
Height E mm 2540 2540 2540
Height F mm 1620 2020 2820
Width G mm 3500 4000 5000
